Productdetails:
|
Aantal geleiders: | 12 | productnaam: | Planar Lightwave Circuit Splitter |
---|---|---|---|
Vezeltype:: | ITU- gespecificeerde G657A1 of klant | Bedrijfstemperatuur:: | -40~+85 |
Sollicitatie: | FTTH | Certificering: | ISO9001/CE/ROHS |
Type: | Single-Mode of Multi-Mode | Kleur: | aqua |
aantal vezels: | 1/2/4 kern | Pakket: | Plastieken zak |
Schede: | PVC | Jasje: | LSZH-PVC |
Markeren: | Sc-Apc Vezel Optische Vlecht,12kern glasvezel Pigtail,1.5m Vezel Optische Vlecht |

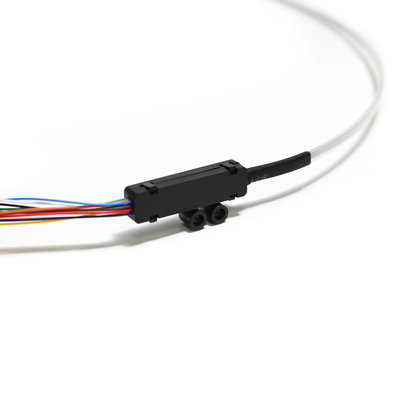

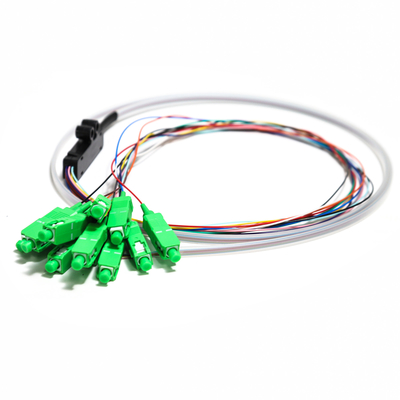

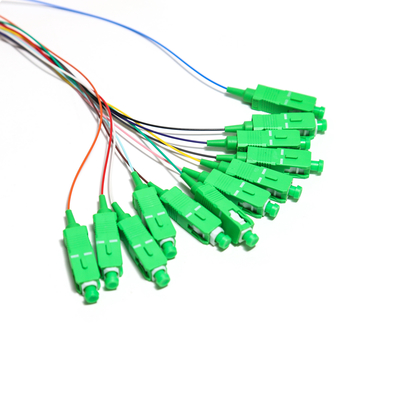

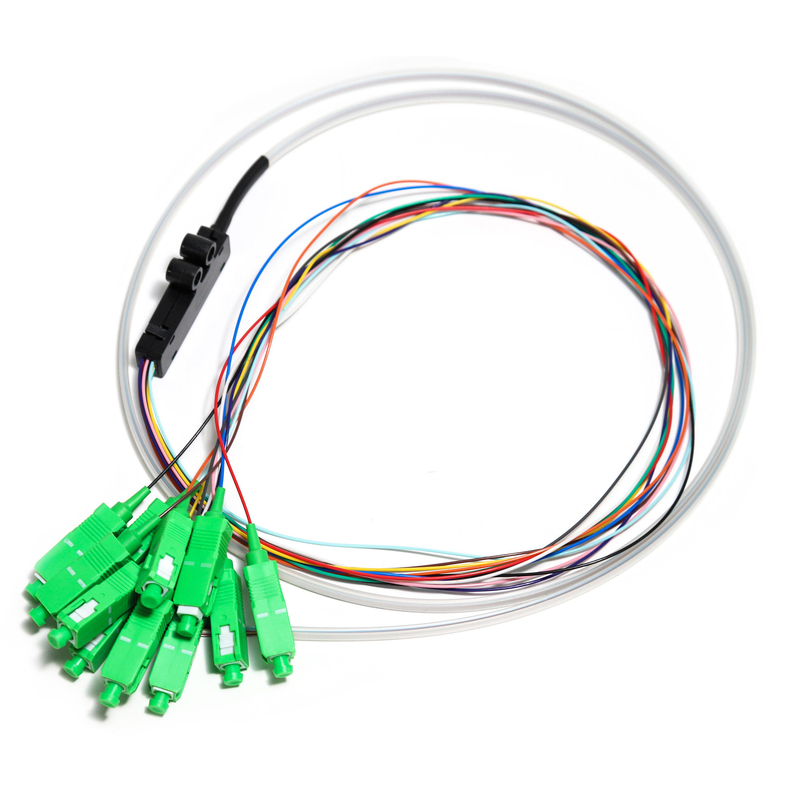

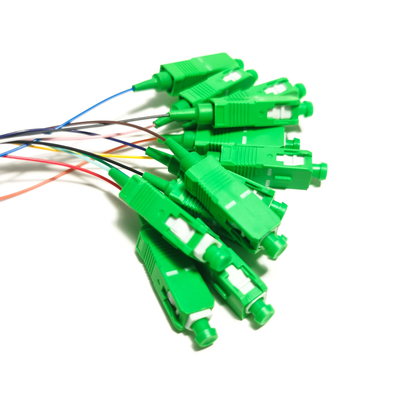

SC APC 12core Fanout Glasvezel Pigtail SM Simplex 1.5M Optische Vezel Pigtail/Planar Lightwave Circuit splitter
Productkenmerken:
Pigtail-connector | PC (SM) | UPC (SM) | APC (SM) | MM |
Retourverlies (db) | ≥45 | ≥50 | ≥60 | ≥35 |
Invoegverlies (db) | ≤0.2 (max.≤0.3) | |||
Herhaalbaarheid (db) | ≤0.1 | |||
Duurzaamheid (1/paringen) | ≥500 | |||
Bedrijfstemperatuur (°C) | -25~+70 | |||
Treksterkte (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
Vezel | 9/125um, 50/125um, 62.5/125um, enz | |||
diameter | 0,9 mm 2,0 mm, 3,0 mm enz | |||
Kabel materiaal | PVC, LSZH | |||
kernen | Simplex, duplex, 4cores, 6cores, 8cores, 12cores enz |
